Description
6 Inch Lift Kit – NTD – M1 – Chevy Avalanche (02-06)/Suburban 1500 (00-06)We’ve raised the bar on our popular 6″ Lift Kit for the 2000-2006 Avalanche, Yukon XL, and Suburban 1500! Say goodbye to the torsion drop kit – our improved Non-Torsion Drop (NTD) design delivers a cleaner look, better handling, and an easier installation. Factory Fit: Torsion bars remain in their original location for seamless integration, ensuring a precise fit. Hassle-Free Install: Redesigned components make installation quicker and easier, so you can hit the trails sooner. Smooth Ride: Engineered to maintain factory ride quality for ultimate comfort on and off the road. Auto Trac Compatible: Fully applicable with Auto Trac-equipped models for seamless performance. Maximum Ground Clearance: Experience unmatched clearance for superior off-road capability and aggressive styling. Optimal Axle Positioning: Axles retain factory position and angle, reducing wear and extending lifespan. Factory Compression Stops: Designed to reuse OEM bump stops for reliability and durability. Configurable Shock Options: Choose from our nitrogen-charged N3, V2 Monotube, or M1 Monotube shocks to customize your ride. This high-performance lift kit includes lifted front knuckles and rear coil springs, allowing you to run up to 35″ tires with ease. High-clearance crossmembers, differential drop brackets, and torsion bar drop brackets keep everything tucked away at optimal angles for superior ground clearance. Front CV spacers, sway-bar links, and a protective skid plate round out the package, giving you everything you need to transform your ride – all at an unbeatable price.
- Factory Fit: Torsion bars remain in their original location for seamless integration.
- Hassle-Free Install: Redesigned components make installation quicker and easier.
- Smooth Ride: Engineered to maintain factory ride quality for ultimate comfort.
- Auto Trac Compatible: Fully applicable with Auto Trac-equipped models.
- Maximum Ground Clearance: Experience unmatched clearance for superior off-road capability.
- Optimal Axle Positioning: Axles retain factory position and angle to reduce wear.
- No Modifications Needed: No changes required to the drivetrain or exhaust.
- Factory Compression Stops: Designed to reuse OEM compression travel stops for reliability.
- Configurable Shock Options: Choose from our nitrogen-charged N3, V2 Monotube, or M1 Monotube shocks – the power to customize your ride is in your hands!
Information:
Frame bracket modification required. 17″ or larger wheels are required. Does not fit models fit auto ride/auto-leveling feature For ease of installation a torsion bar removal tool is recommended 1067.
Application Summary:
| Year | Make/Model |
|---|---|
| 2002-2006 | Chevrolet Avalanche 1500 |
| 2000-2006 | Chevrolet Suburban 1500 |
| 2000-2006 | GMC Yukon XL 1500 |
| Attributes | |
| Category | Susp Lift Kits 4wd, Susp Lift Kits 4wd |
| Country of Origin (Primary) | US |

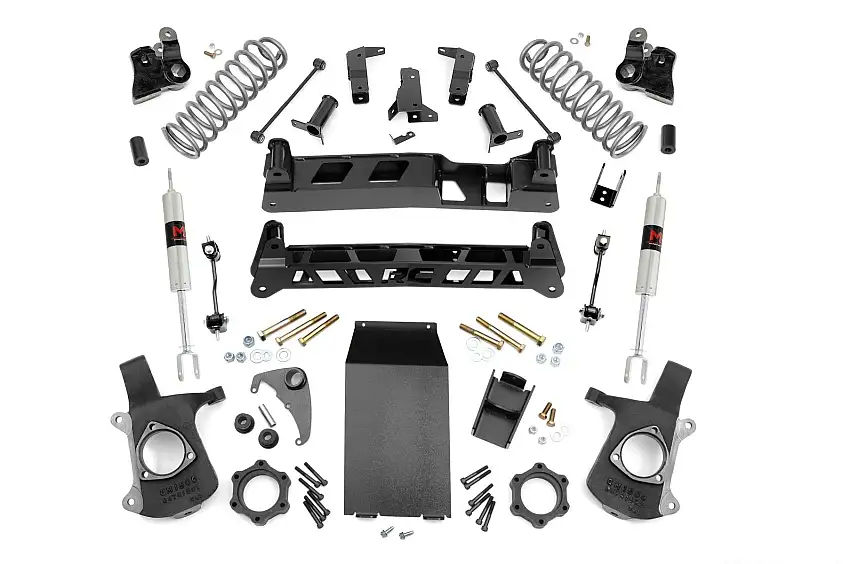

| Front Components | Lifted knuckles, Front crossmember, Rear crossmember, Non-torsion bar drop brackets, Differential drop brackets, CV spacers, Lower skid plate, Sway-bar links, Hardware |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Hazardous Material Code | N |
| Install Time | 8 – 10 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 6 in. |
| NAFTA Preference Criterion Code | B |
| Rear Components | Lifted coil springs |
| SDR Required Flag | N |
| Shipping Group | No Restrictions |
| Shipping Options | No Restrictions |
| Ships in Multiple Boxes | Y, Y |
| Tire, Wheel, and Offset Info | 305 70R17:17×8.5:6×5.5:+0:-; 305 70R17:17×8.5:6×5.5:+1:-; 305 70R17:17×9:6×5.5:-12:-; 305 70R17:17×9:6×5.5:+0:-; 305 70R17:17×9:6×5.5:+1:-; 295 70R18:18×8.5:6×5.5:+0:Minor Trimming; 295 70R18:18×8.5:6×5.5:+1:Minor Trimming; 295 70R18:18×9:6×5.5:+0:Minor Trimming; 295 70R18:18×9:6×5.5:+1:Minor Trimming; 305 55R20:20×9:6×5.5:-12:-; 295 60R20:20×9:6×5.5:-12:-; 305 55R20:20×9:6×5.5:+0:-; 295 60R20:20×9:6×5.5:+0:Minor Trimming; 305 55R20:20×9:6×5.5:+1:-; 295 60R20:20×9:6×5.5:+1:Minor Trimming |
| Utv Product | N |
| GTIN | 00840269917219 |
