Description
5 Inch Lift Kit – NTD – V2 – Chevy/GMC 2500HD/3500HD (11-19)Right off the lot The GM 2500 HD has an impressive stance and a killer look, inspiring Rough Country to build a kit that would add crucial enhancements while taking nothing away from this sharp looking, new model truck. The 5″ N3 Suspension Lift for GM 2500 HD features a Non-Torsion Drop Design for better clearance and handling while maintaining proper angles in a “clean and tucked away” fashion. This kit also features Heavy Duty components worthy of the HD badge
- Maintains factory ride quality
- Maintains the stock track width
- Torsion bars stay in the factory location
- Unmatched ground clearance
- Axles maintain factory position and angle
- No drilling or modifying of the differential
- No drivetrain or exhaust modifications required
- Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.
Information:
Requires minor cutting and drilling. Does NOT fit dually models. Does NOT fit models with Magnetic Ride Control. Gas models may require modification to the exhaust for driveshaft clearance Factory rear overload springs will NEED to be removed on equipped models. Does NOT work with factory wheels. Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers/rotor.
Application Summary:
| Year | Make/Model |
|---|---|
| 2011-2019 | Chevrolet Silverado 2500 HD |
| 2015 | Chevrolet Silverado 3500 |
| 2011-2019 | Chevrolet Silverado 3500 HD |
| 2011-2019 | GMC Sierra 2500 HD |
| 2011-2019 | GMC Sierra 3500 HD |
| Attributes | |
| Category | Susp Lift Kits 4wd, Susp Lift Kits 4wd |
| Country of Origin (Primary) | US |

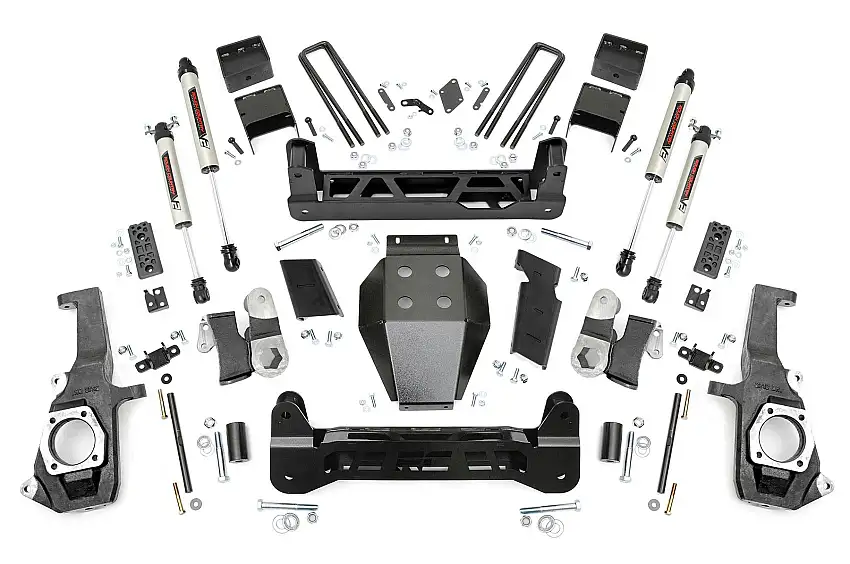

| Front Components | Lifted knuckles, Front crossmember, Rear crossmember, Differential drop brackets, Differential skid plate, Non-torsion bar drop brackets, Sway-bar link extensions, Sway-bar brackets, Upper shock brackets, Brake line relocation brackets, Hardware |
| Front Kit Components | Lifted knuckles Front crossmember Rear crossmember Differential drop brackets Differential skid plate Non-torsion bar drop brackets Sway-bar link extensions Sway-bar brackets Upper shock brackets Brake line relocation brackets Hardware |
| Harmonized Tariff Code (Schedule B) | 8708801600 |
| Hazardous Material Code | N |
| Install Time | 8 – 10 hours |
| Life Cycle Status Code | Available to Order |
| Lift/Drop Height | 5 in. |
| NAFTA Preference Criterion Code | B |
| Rear Components | Lifted blocks, U-bolts, Bump-stop brackets, Brake line brackets, E-brake line bracket, Hardware |
| Rear Kit Components | Lifted blocks U-bolts Bump-stop brackets Brake line brackets E-brake line bracket Hardware |
| SDR Required Flag | N |
| Shipping Group | No Restrictions |
| Shipping Options | No Restrictions |
| Ships in Multiple Boxes | Y, Y |
| Tire & Wheel Size Combinations | 2011-2019:2WD:Chevy:Silverado 2500 HD;2011-2019:4WD:Chevy:Silverado 2500 HD;2011-2019:2WD:Chevy:Silverado 3500 HD;2011-2019:4WD:Chevy:Silverado 3500 HD;2011-2019:2WD:GMC:Sierra 2500 HD;2011-2019:4WD:GMC:Sierra 2500 HD;2011-2019:2WD:GMC:Sierra 3500 HD;2011-2019:4WD:GMC:Sierra 3500 HD |
| Tire, Wheel, and Offset Info | 35×12.50R20:20×9:8×180:-12:-; 295 60R20:20×9:8×180:-12:-; 35×12.50R20:20×9:8×180:+0:-; 295 60R20:20×9:8×180:+0:-; 35×12.50R20:20×9:8×180:+1:-; 295 60R20:20×9:8×180:+1:-; 35×12.50R20:20×10:8×180:-25:Minor Trimming; 295 60R20:20×10:8×180:-25:Minor Trimming; 35×12.50R20:20×10:8×180:-24:Minor Trimming; 295 60R20:20×10:8×180:-24:Minor Trimming; 35×12.50R20:20×10:8×180:-19:Minor Trimming; 295 60R20:20×10:8×180:-19:Minor Trimming; 35×12.50R20:20×10:8×180:-18:Minor Trimming; 295 60R20:20×10:8×180:-18:Minor Trimming; 35×12.50R20:20×12:8×180:-44:Trimming Required; 35×12.50R22:22×10:8×180:-25:Minor Trimming; 295 55R22:22×10:8×180:-25:Minor Trimming; 35×12.50R22:22×10:8×180:-24:Minor Trimming; 295 55R22:22×10:8×180:-24:Minor Trimming; 35×12.50R22:22×10:8×180:-19:Minor Trimming; 295 55R22:22×10:8×180:-19:Minor Trimming; 35×12.50R22:22×10:8×180:-18:Minor Trimming; 295 55R22:22×10:8×180:-18:Minor Trimming; 35×12.50R22:22×12:8×180:-44:Trimming Required |
| Utv Product | N |
| GTIN | 00843030198039 |
