Description

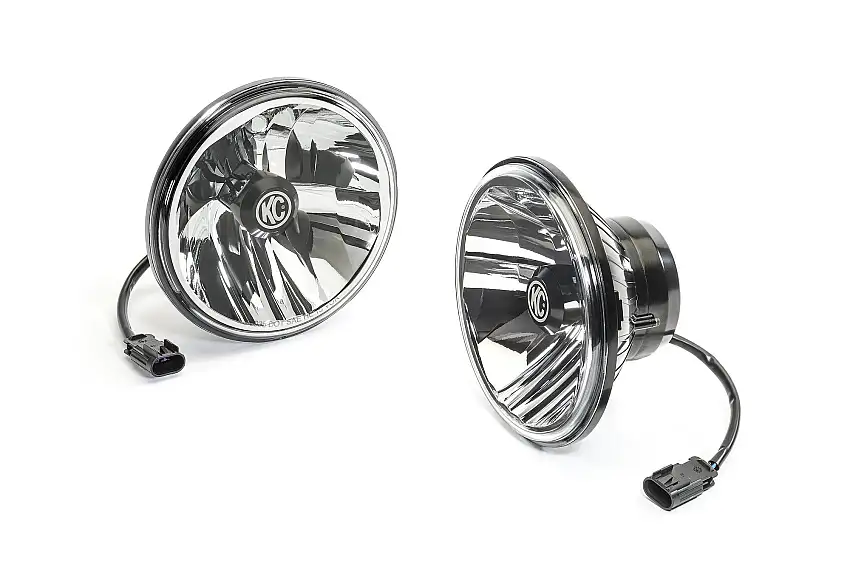

KC HiLiTES Gravity LED 7″ Jeep JK Headlight features bright CREE LEDs for DOT compliant Low/High beam for 07-18 Jeep JKs. Die-cast aluminum housing using KC Gravity Reflective Diode with polycarbonate lens for optical clarity and output.
Application Summary:
| Year | Make/Model |
|---|---|
| 2007-2013 | Jeep Wrangler |
| 2015-2017 | Jeep Wrangler |
| 2018 | Jeep Wrangler JK |
| Attributes | |
| Add-on | N/A |
| Amp Draw | 1.88A, 1.88A |
| Application | Automotive |
| Beam Distance | Low- 407m, High- 557m |
| Beam Distance (Meters) | Low 407m, High 557m, Low 407m, High 557m |
| Beam Pattern | Headlight, Headlight |
| Beam Style | OE |
| Bulb Technology | LED |
| Bulb Type | LED |
| Candela | Low- 41,500 Cd, High- 77,500 Cd, Low- 41,500 Cd, High- 77,500 Cd |
| Color Temperature | 5000K, 5000K |
| Compliance | SAE J851 ECE-R112, SAE J851 ECE-R112 |
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (Schedule B) | 8512202000 |
| Hazardous Material Code | N |
| Housing Color | Silver |
| Housing Shape | Round |
| IP Rating | IP68, IP68 |
| LED Bulb | CREE XHP35 HI and Nichia, CREE XHP35 HI and Nichia |
| LED Source | CREE XHP35 HI and Nichia, CREE XHP35 HI and Nichia |
| Life Cycle Status Code | Available to Order |
| Light Color | White |
| Light Temp | 5000K |
| Lumens | 1260, 1260 |
| LUX | Low- 415, High- 775, Low- 415, High- 775 |
| Lux at 10 Meters | Low 415 lx, High 775 lx |
| Lux at 10 Meters | Low 415 lx, High 775 lx, Low 415 lx, High 775 lx |
| NAFTA Preference Criterion Code | B |
| Parts Included | Plug-n-Play H13 Connector for Jeep JK, Plug-n-Play H13 Connector for Jeep JK |
| Product Dimensions | W 6.96 in x D 3.72 in, W 6.96 in x D 3.72 in |
| Quantity Sold | 1 |
| Raw Lumens | Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm, Low- 1,260 lm, High- 3,666 lm, DRL- 275 lm |
| SDR Required Flag | N |
| Voltage | 9V-18V, 9V-18V |
| Warranty Time | 5 |
| Wattage | Low- 18W, High- 22W, Low- 18W, High- 22W |
| GTIN | 00084709042356 |
