Description

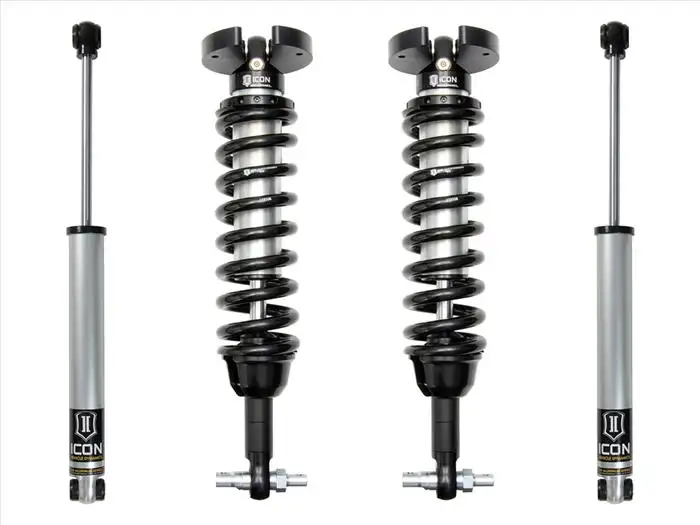

ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.5-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Features | Specification:
- Adjustable coilovers provide 1.5-3.5″ of front lift height
- Increased lift height allows for fitment of larger and more aggressive tires
- Up to 25% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- 2.5 Series coilovers feature corrosion resistant CAD plated shock body with 7/8″ shaft
- 2.0 Aluminum Series rear shocks feature corrosion resistant anodized shock body with 5/8″ shaft
- 7.5″ aluminum reservoirs provide generous oil and nitrogen volume for consistent damping as shock temperature increases
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
- Direct bolt-in design makes for a simple and straightforward installation
Note(s):
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires (Silverado): 35″x12.50″ (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Tires (Sierra): 34″x12.00″ (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #48: Slight Modifications To Factory Shock Mounts May Be Required
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
- Not compatible with models equipped with Adaptive Ride Control (ARC)
- Not compatible with models equipped with 4-cylinder engine
- Not compatible with Silverado 1500 ZR2 or Sierra 1500 AT4X sub-models
- Models equipped with Duramax 6-cylinder diesel engine will have lift height adjustment range reduced by approximately .5″
- Included rear shocks are compatible with 0-2″ of rear lift on most models. Rear shocks are not recommended with any additional rear lift on Silverado 1500 Trail Boss and Sierra 1500 AT4.
- Chevrolet Silverado Trail Boss and GMC Sierra 1500 AT4 lift height range 0-1.5″ over stock
- Recommend replacing OE rear blocks on Silverado 1500 Trail Boss and Sierra 1500 AT4 models with 1″ rear blocks if level stance is desired. See ICON part numbers 51001 and 52050.
- Not compatible with models equipped with torsion bar front springs
- Ships In Multiple Boxes
Upgrade your 4×4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!
This Item Fits:
- Chevrolet Silverado 1500 LTD Custom Trail Boss 2022
- Chevrolet Silverado 1500 LTD High Country 2022
- Chevrolet Silverado 1500 LTD LT 2022
- Chevrolet Silverado 1500 LTD LT Trail Boss 2022
- Chevrolet Silverado 1500 LTD LTZ 2022
- Chevrolet Silverado 1500 LTD RST 2022
- Chevrolet Silverado 1500 LTD SSV 2022
- Chevrolet Silverado 1500 LTD WT 2022
- Chevrolet Silverado 1500 LT 2019 – 2023
- Chevrolet Silverado 1500 RST 2019 – 2023
- Chevrolet Silverado 1500 Custom Trail Boss 2019 – 2021
- Chevrolet Silverado 1500 LT Trail Boss 2019 – 2021
- Chevrolet Silverado 1500 SSV 2019 – 2021
- Chevrolet Silverado 1500 WT Cab Regular 2019 – 2020
- Chevrolet Silverado 1500 WT Doble Cabina 2019 – 2020
- Chevrolet Silverado 1500 Custom 2019
- Chevrolet Silverado 1500 High Country 2019
- Chevrolet Silverado 1500 LTZ 2019
- Chevrolet Silverado 1500 WT 2019
- Chevrolet Silverado 1500 LT 2020 – 2023
- Chevrolet Silverado 1500 LTZ 2020 – 2023
- Chevrolet Silverado 1500 RST 2020 – 2023
- Chevrolet Silverado 1500 WT 2020 – 2023
- Chevrolet Silverado 1500 Custom 2020 – 2021
- Chevrolet Silverado 1500 WT 2020 – 2021
- Chevrolet Silverado 1500 High Country 2020
- Chevrolet Silverado 1500 High Country 2021 – 2023
- Chevrolet Silverado 1500 Custom Trail Boss 2022 – 2023
- Chevrolet Silverado 1500 LT Trail Boss 2022 – 2023
- Chevrolet Silverado 1500 Base 2023
- Chevrolet Silverado 1500 PPV 2023
- GMC Sierra 1500 Limited AT4 2022
- GMC Sierra 1500 Limited Elevation 2022
- GMC Sierra 1500 Limited Pro 2022
- GMC Sierra 1500 Limited SLE 2022
- GMC Sierra 1500 Limited SLT 2022
- GMC Sierra 1500 Elevation 2019 – 2023
- GMC Sierra 1500 SLE 2019 – 2023
- GMC Sierra 1500 Base 2019 – 2021
- GMC Sierra 1500 AT4 2019
- GMC Sierra 1500 SLT 2019
- GMC Sierra 1500 AT4 2020 – 2023
- GMC Sierra 1500 Elevation 2020 – 2023
- GMC Sierra 1500 SLE 2020 – 2023
- GMC Sierra 1500 SLT 2020 – 2023
- GMC Sierra 1500 Pro 2022 – 2023
