Description

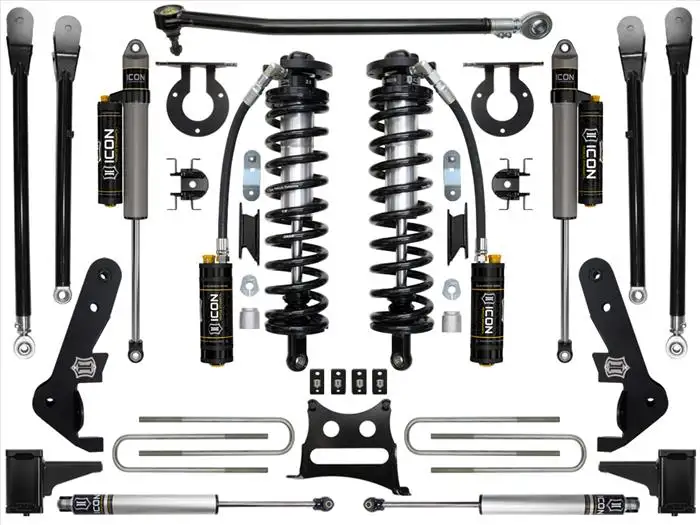

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Features | Specification:
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 4-5.5″ or 4.75-6.25″ of lift, depending on year model of truck
- Increased wheel travel and ride quality over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8″ shaft
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Note(s):
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys – 17×8.5″ w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 18×9″ w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys – 20×9″ w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37″ x 12.50″ (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
- APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms.
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
- APPLICATION NOTE #120: Secondary Shock Options Available, Contact ICON For More Details
- 2017-2019 Super Duty models will have front lift height range of 4-5.5 over stock
- 2020-2022 Super Duty models without Tremor package will have front lift height range of 4.75-6.25″ over stock
- 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 3.75-5.25″ over stock
- Brake line kit (Part # 61110) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- Track bar bracket part number 64039 is optional, but recommended to correct steering geometry.
- Ships in multiple boxes
Upgrade your 4×4 with quality parts and accessories from Sexton Offroad. Visit us for installation at our Salt Lake City or Park City, Utah locations. Plus, enjoy free shipping on thousands of products nationwide!
This Item Fits:
- Ford F-250 Super Duty XL 2017 – 2019 4WD
- Ford F-250 Super Duty XLT 2017 – 2019 4WD
- Ford F-250 Super Duty Lariat 2017 – 2019 4WD
- Ford F-250 Super Duty King Ranch 2017 – 2019 4WD
- Ford F-250 Super Duty Platinum 2017 – 2019
- Ford F-250 Super Duty Limited 2018 – 2019
- Ford F-250 Super Duty XL 2020 – 2022 4WD
- Ford F-250 Super Duty Lariat 2020 – 2022 4WD
- Ford F-250 Super Duty King Ranch 2020 – 2022 4WD
- Ford F-250 Super Duty Platinum 2020 – 2022
- Ford F-250 Super Duty Limited 2020 – 2022
- Ford F-250 Super Duty XLT 2020 – 2021 4WD
- Ford F-250 Super Duty XLT 2022 4WD
- Ford F-350 Super Duty XL 2017 – 2019 4WD
- Ford F-350 Super Duty XLT 2017 – 2019 4WD
- Ford F-350 Super Duty Lariat 2017 – 2019 4WD
- Ford F-350 Super Duty King Ranch 2017 – 2019 4WD
- Ford F-350 Super Duty Platinum 2017 – 2019 4WD
- Ford F-350 Super Duty Limited 2018 – 2019
- Ford F-350 Super Duty XL 2020 – 2022 4WD
- Ford F-350 Super Duty Lariat 2020 – 2022 4WD
- Ford F-350 Super Duty King Ranch 2020 – 2022 4WD
- Ford F-350 Super Duty Platinum 2020 – 2022 4WD
- Ford F-350 Super Duty Limited 2020 – 2022
- Ford F-350 Super Duty XLT 2020 – 2021 4WD
- Ford F-350 Super Duty XLT 2022 4WD
