Description

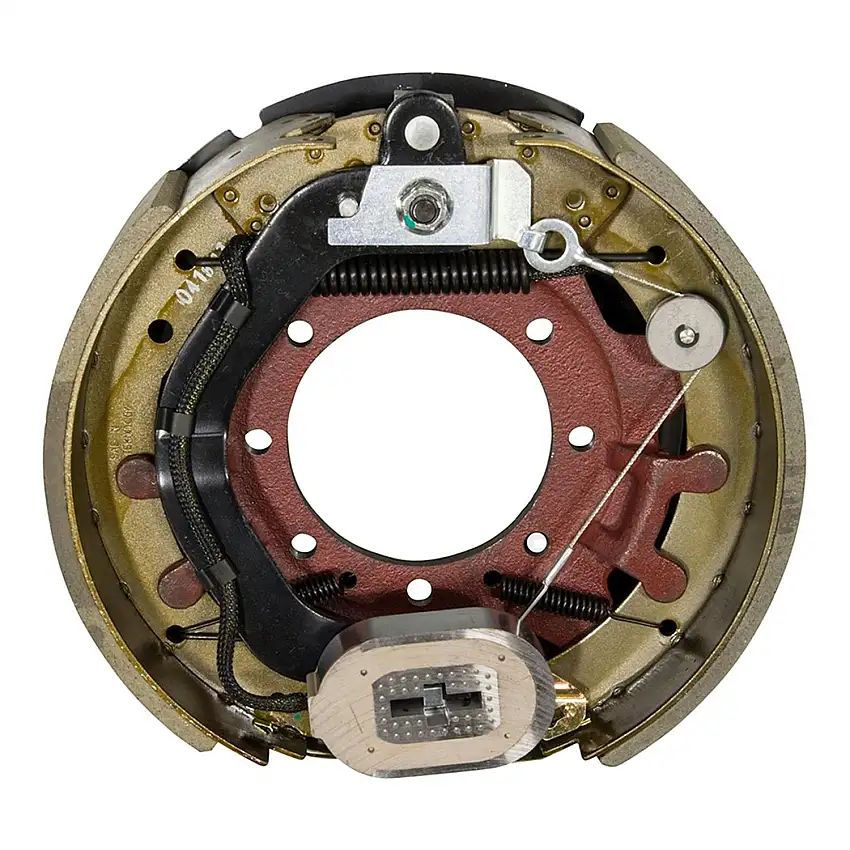

CURT 181935 Electric Trailer Brake Assembly – 12.25″ x 3.38″ 10,000 lbs. Left SideIf you need to replace your electric brake assembly, go with a trusted name. Get a genuine Lippert replacement part! Electric brake assemblies are easier to install than hydraulic brakes, and self-adjusting brakes mean you never have to manually adjust them after the initial adjustment. Forward self-adjusting brakes self-adjust during every forward stop, providing up to 50 percent better braking distance and preventing premature brake line and magnet wear. This electric brake assembly is compatible with 16-17.5” wheels, made for 10,000-lb. axles, and goes on the left side of the trailer (roadside / driver side). This is a replacement electric brake assembly for RVs and other trailers. Please reference your original equipment label before purchasing. Be sure to inspect and maintain your brakes periodically. Worn-out brakes can lead to axle failure.
- Replacement standard electric brake assembly with park
- Self-adjusting configuration eliminates the need for manual adjustment
- Designed for left-hand (roadside) installation only
- For axles rated to 10,000 lbs.
- Seven-bolt mounting pattern
- Easy, DIY installation (hardware sold separately)
- For 16″, 16.5″, 17″ or 17.5″ wheels
- Brake size: 12″ x 3.38″
- New electric drum brakes will require a break-in period to achieve full performance.
Information:
New electric drum brakes will require a break-in period to achieve full performance.
| Attributes | |
| Container Volume Cubic Feet – XA | 0.00000 |
| Container Volume Cubic Meter – XA | 0.00000 |
| Country of Origin (Primary) | CN |
| Finish – XA | Blank |
| Harmonized Tariff Code (Schedule B) | 8716905060 |
| Item Class – XA | LRV |
| Item Height – XA | 0.000 |
| Item Length – XA | 0.000 |
| Item Width – XA | 0.000 |
| Life Cycle Status Code | Available Only While Supplies Last |
| Master Case Height Inches – XA | 0.000 |
| Master Case Length Inches – XA | 0.000 |
| Master Case Volume Cubic Feet – XA | 0.00000 |
| Master Case Weight Lbs – XA | 0.000 |
| Master Case Width Inches – XA | 0.000 |
| Material – XA | Blank |
| Mount Type Description – XA | Blank |
| NAFTA Preference Criterion Code | B |
| Pallet Qty – XA | 81.000 |
| Pallet Total Height Inches – XA | 0.000 |
| Pallet Total Weight Per – XA | 0.000 |
| Parcel Allowed – XA | Yes |
| Product Weight – XA | 0.000 |
| Rate Class – XA | 70.0 |
| Retail Height – XA | 4.000 |
| Retail Length – XA | 14.000 |
| Retail Width – XA | 14.000 |
| Sales Family Code – XA | TPACC |
| Sales Family Description – XA | TRAILER PARTS AND ACCESS |
| Sales Group Description – XA | LIPPERT BRAKE ASSEMBLY |
| SDR Required Flag | N |
| Shipping Weight – XA | 20.000 |
| Side Application Type Description – XA | Not Applicable |
| Tariff 301 – XA | Yes |
| Truckload Volume Cubic Feet – XA | 0.00000 |
| GTIN | 00848150012838 |
