Description

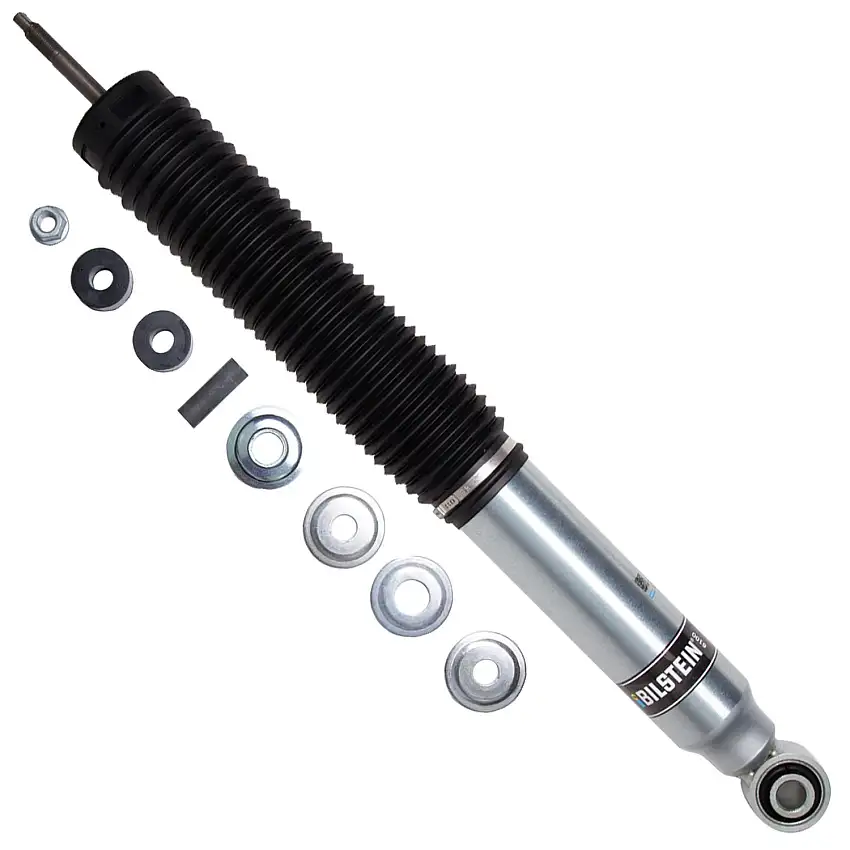

60mm Monotube Shock AbsorberBilstein B8 6100 shock absorbers are filled with the technology perfected over 3 decades of off-road dominance. Bilstein’s monotube gas pressure design with a large 2.65-in OD body and 60mm digressive piston maximizes heat dissipation for increased shock life, and decreases oil foaming to prevent performance loss while providing a smoother ride and more control over rough terrain. The B8 6100 will provide increased durability, making them perfect for vehicles subjected to rugged roads and harsh conditions.
- 60mm digressive piston improves ride comfort and control over rough terrain
- Vehicle specific tuning
- Large 60mm body for increased oil capacity, cooling, and long-term durability
Application Summary:
|
|
| Year |
Make/Model |
| 2022-2025 |
Toyota Tundra |
|
|
| Attributes |
| Adjustable Damping |
Non-Adjustable |
| Adjustable Rebound |
No |
| Body Design |
Smooth Body (Non-coilover) |
| Body Diameter (ID) |
60mm |
| Body Diameter (OD) |
2.65 in. |
| Boot Included |
Black Bellows |
| Collapsed Length (IN) |
16.59 |
| Collapsed Length (mm) |
421.4 |
| Country of Origin (Primary) |
US |
| Emission Code |
Legal US |
| Extended Length |
25.18 |
| Extended Length (IN) |
25.18 |
| Extended Length (mm) |
639.5 |
| Finish |
Zinc Plated |
| Grade Type |
Performance |
| Harmonized Tariff Code (Schedule B) |
8708800050 |
| Hazardous Material Code |
N |
| Internal Design |
Monotube |
| Life Cycle Status Code |
Available to Order |
| Lower Mount Type |
Eye 19.1mm |
| Mounting Hardware Included |
Yes |
| PartType |
Shocks / Struts |
| Piston Diameter |
60mm |
| Reservoir |
No |
| SDR Required Flag |
Y |
| SDS Sheet Number |
USA SDS_Shock_Air Spring_V2_EN.pdf |
| Segment |
Light Truck |
| Series |
B8 6100 |
| Shaft Diameter |
18mm |
| Spring Max Travel (IN) |
8.59 |
| Spring Seat Included |
No |
| Stroke/Travel Length (IN) |
8.59 |
| Stroke/Travel Length (mm) |
218.2 |
| Upper Mount Type |
Stem |
| GTIN |
00651860921013 |
