Description
Highlights:
- Clear up to 35″ Off-Road Tires
- Features High-Clearance Tubular Radius Arms
- Improve Off-Road Performance and Maintain a Stable Street Ride
- Includes Front and Rear Bilstein Shocks
- Backed by a Limited Lifetime Warranty
Lift Your Exterior And Your Truck’s Overall Performance

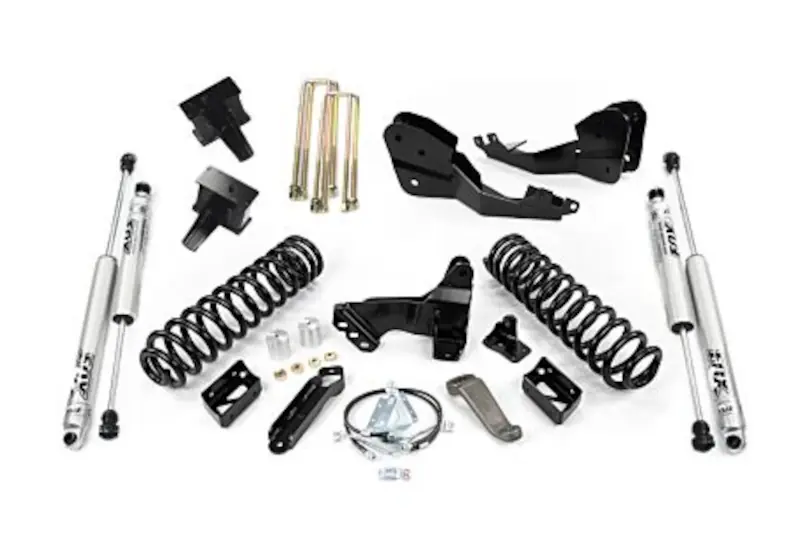

Lift your F250 or F350 and it’s suspension all at once with this kit from Superlift. This kit provides four inches of lift and includes everything required to help your truck perform at it’s best even at the new height. Superlift was sure to include Front coil springs, high-clearance tubular radius arms, track bar bracket, brake line brackets, steering stabilizer bracket, shocks, and all hardware needed for installation in addition to that it also includes front and rear Bilstein 5100 series shocks. At the core of this kit are rear fabricated blocks that include the proper lift and a brand new design. The fabricated rear block also allows for proper pinion and axle angle all while reducing axle wrap.
Bilstein 5100 Shocks Included
One of the stars of this kit is the Bilstein shocks that it includes. The reason is Bilstein ensures their shocks are built around a monotube, nitrogen gas-charged design with a 46mm digressive piston. Each shock uses self-adjusting deflective disc valving that provides it with excellent response in almost any application. The body of each shock is made out of heavy-duty steel with a zinc-plated finish and a Triple-C coating for great looks and high strength. The Bilstein 5100 series shocks are built from the ground up for light truck applications and is the perfect choice for the Super Duty that does a little bit of everything. The specialized valving and high-quality piston of these shocks provide excellent off-road performance, improved towing control, and a much more planted street ride without ruining your truck’s factory ride comfort.
CAD Modeled, High-Strength Radius Arms
Superlift utilized OEM CAD models and the latest 3D design software to manufacture their high-clearance tubular radius arms, engineered specifically for the 2017-2022 Super Duty. These massive radius arms use OEM Clevite bushings to reduce noise, vibration and harshness (NVH). Track bar relocation bracket is included along with fabricated rear blocks for the rear.
Fitment: 2017-2022 F250 & F350 4WD 6.7L Powerstroke Diesel
Warranty: This lift kit is backed by SuperLift’s Factory Warranty Assurance Program and Limited Lifetime Warranty.
Fitment Notes:
- If your truck is equipped with a two-piece rear drive shaft, a carrier bearing spacer is required. You can add SuperLift’s carrier bearing spacer using the drop-down menu above.
- If your truck is equipped with the factory top mount overload leaf, longer u-bolts are required. Add SuperLift’s u-bolt kit from the drop-down menu above.
